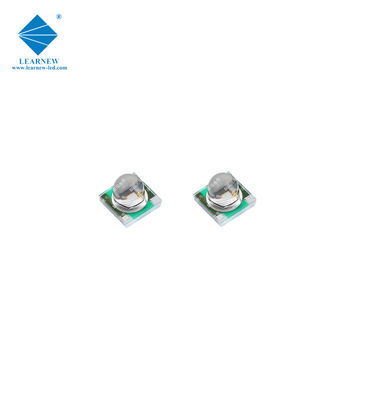

Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle

Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle
Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle

Μεγάλες Εικόνας :  Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle

Λεπτομέρειες:
Τόπος καταγωγής: Guangdong, Κίνα
Μάρκα: Learnew
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: 10

Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle

περιγραφή
Τάση εισόδου: 3.0-3.4V Φωτεινή αποτελεσματικότητα: 240 lm/w
Φωτεινή ροή: 240-280LM · 350-400LM Εξουσία: 3W, 4W
γωνιά προβολής: 120 ° Δείκτης απόδοσης χρώματος: 70/80/90/95
Θερμοκρασία λειτουργίας: -20 - 100 ℃ θερμοκρασία αποθήκευσης: -20 - 80 ℃
Μέγεθος: 3.5*3.5mm ρεύμα: 700mA·1000mA
Υλικό τσιπ: Ινγκάν Υπόστρωμα: Κεραμικός
Μέγεθος τσιπ: R3.0MM Οπτική εξασθένηση: 0,1%
Βάρος προϊόντος: 0,01 κιλά
Επισημαίνω:

Sanan SMD3535 LED chip 3W white

,

ceramic substrate LED chip 4W

,

120° viewing angle SMD LED

Gold Wire Bond Sanan SMD3535 High Lumen Flash Light Spare Parts Customs Wire+connector Single Color White or R/G/B Led Chip
Product Specifications
Color Temperature (CCT) 2700K (Soft Warm White), 3500K (Warm White), 4100K (Neutral White), 5000K (Daylight), 6000K (Daylight Alert)
Input Voltage 3.0-3.4V
Warranty 2-Year
Type SMD LED
Support Dimmer Yes
Lighting Solutions Service Lighting and circuitry design, LitePro DLX layout, auto CAD layout
Luminous Efficacy 240 lm/w
Lifespan 2 years
Product Weight 0.01 kg
Chip Material INGAN
Emitting Color White
Luminous Flux 240-280LM; 350-400LM
Power 3W, 4W
Viewing Angle 120°
Color Rendering Index (Ra) 70/80/90/95
Operating Temperature -20°C to 100°C
Storage Temperature -20°C to 80°C
Substrate Ceramic
Size 3.5*3.5MM
Chip Brand SANAN 55mil/SANAN 45mil
Product Description

We accept OEM and ODM service to customize any type of LED chip.

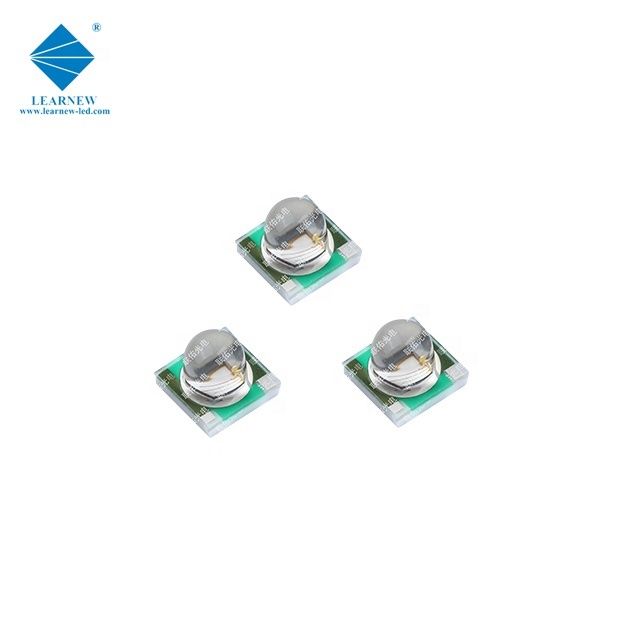

Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle 0 Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle 1
Design Advantages
  • Ceramic leadframe
  • High ESD pass
  • Standard A Class chips
  • Cost performance
  • Gold wire bond
  • Easy reflow soldering

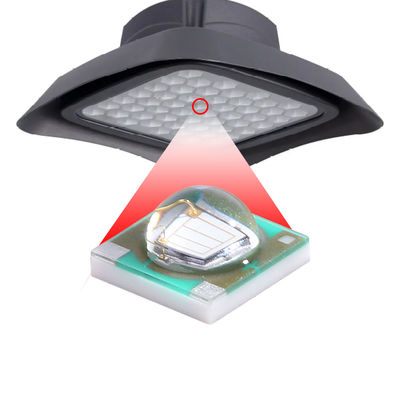

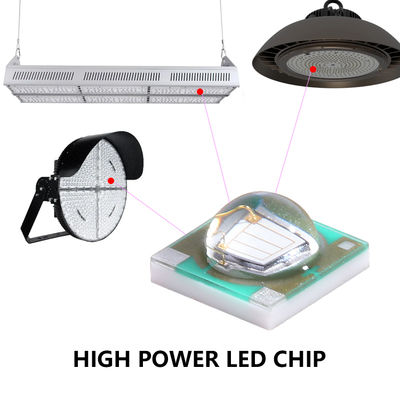

Applications
  • LED grow light
  • LED torch
  • LED stage light
  • LED streetlight
  • LED Landscape lighting
  • LED spotlight
Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle 2 Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle 3 Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle 4
Company Information
Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle 5 Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle 6 Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle 7 Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle 8

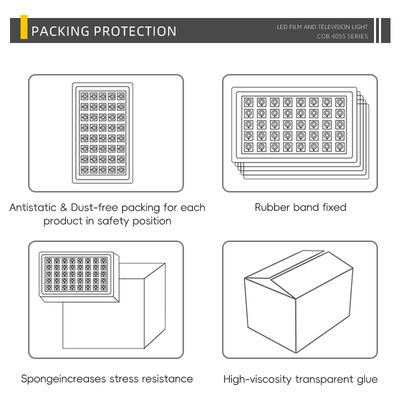

Product Packaging
Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle 9 Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle 10
Frequently Asked Questions
Q1: Do you supply OEM, ODM service?
A1: YES, absolutely it can be realized. We focus on OEM & ODM service for more than 7 years.
Q2: All the pictures are real photos?
A2: Yes, the pictures of all products on this page are 100% real photos taken by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs, including products parameters, application, your contact way and quantity. Our professional team will reply you within one hour.
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. The shipping costs are based on your order's volume and weight.
Q6: How to place an order?
A6: You can check the shipping cost and discount information online, and place order directly or contact us for order details.
Q7: What payment terms are available?
A7: T/T, PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
